  • Made for the future, in action today.
  • Reliable power, anywhere - any hour.
  • Engineered for maximum uptime.
  • Less fuel, More kVA.
  • Exceptional step load handling capability.

  1. The Power House

    • In-house packaging
    • In-house design & manufacturing of Control Panel,Acoustic Canopy, Base Frame & Silencers & Fuel Tank
    • Powder coating with 9 Tank pre-treatment process.
    • In-house test cell
    • Manufactured for ease of servicing & usage.

  2. The Engine

    • Impressive 16 litre V8 engine-sourced from Scania, a Volkswagen family company.
    • Made for the future, in action today.
    • Reliable power, anywhere - any hour.
    • Engineered for maximum uptime.
    • Less fuel, More kVA.
    • Exceptional step load handling capability.

  3. The AC Generators

    • Provided with AREP winding / PMG.
    • LAM for sudden block loading, improving recovery time.

  4. Diagnostic & Monitoring

    • Monitors Engine speed, oil pressure & coolant temperature.
    • Monitors frequency, voltage, current & power.
    • Comprehensive engine and alternator protection.
    • Inbuilt Auto-Mains (Utility), failure control module.
    • Largest backlit LCD icon display, with alarm indication.

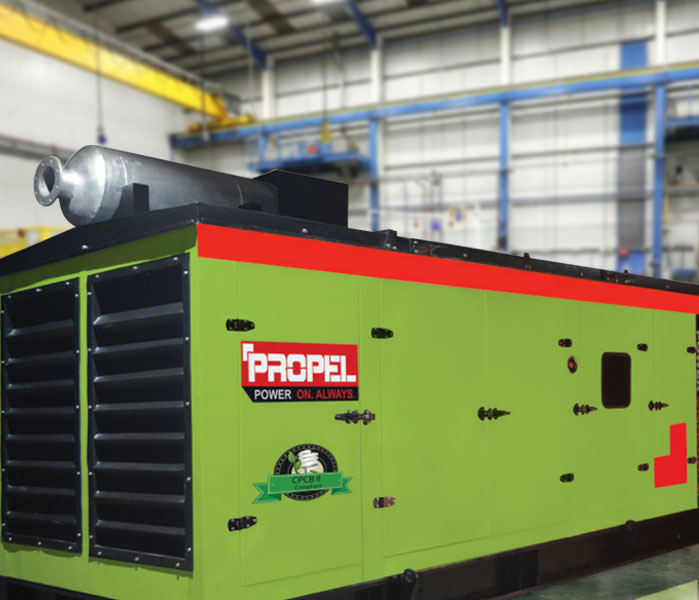

  5. For Enclosures

    • Modular RTU Design
    • Twin door system leading to better access to the digiset,resulting in easy maintenance and maximum uptime.
    • Special access for radiator cleaning.
    • Powder coated for weather proof and long lasting finish.

Gas Generator Set

Model P 350 OC16 P 365 OC16 P 380 OC16 P 400 OC16 P 450 OC16
Power rating kVA / kWe 350 / 280 365 / 292 380 / 304 400 / 320 450 / 360
Duty PRIME
Power Factor 0.8 lagging
Output Voltage Volts 415
Output Frequency Hz 50
No. of Phases 3
Full load Current Ampere 487 507 528 556 626
RPM 1500
Overall Dimensions of the genset (L x W x H) mm 5700 x 2100 x 2400
Approximate Weight kg 7100
Acoustic Canopy 6 sided, container type, Bottom Lifting, made out of 100 mm steel, CRCA sheets, rockwool insulation and residential silencer.

Gas Engine

Engine Model OC16 071A OC16 071A OC16 071A OC16 071A OC16 071A
Configuration and No Of Cylinders Qty 90º V8
No. of Stroke 4 Stroke
Bore mm 130
Stroke mm 154
Displacement Litres 16.4
Compression Ratio 12.2:1
Direction of Rotation from Flywheel end Counter Clock wise
Pieston Speed @ 1500 rpm M/S 7.7
Air Temp @ ISO Condition ºC 25
CAC Temperature ºC 43 47 50
Exhaust Flow Kg / Min 28 31 34
Exhaust Temp @ 100% Load ºC 473 476 487
Step Load Performance @ Class G2,Governing % 28 26 23
FAN Power kW 20
Injection System Type Zero Pressure Ventury Gas Feed Fuel System
Governing system EMS,OCE 1 (BOSCH EGC4 HW)
Air Consumption Kg / Min 27 30 32
Reference Standard REF ISO 8528-5 G2
Starting Battery Volts Volts 24 V
Cooling Capacity Including Radiator Lit 68
Engine Mounted Radiator Fan Power kW 13
High Engine Temp Limit-Alarm ºC 98
High Engine Temp Limit-Stop ºC 105
Filter Type Paper filter element, 10 micron
No. of filters Qty 1
Lub Oil system capacity (with filters) Lit 48
Lube Oil Consumption Gms/kWH <0.2
Lube Oil Change Period Hours 500 hours
Lube Oil Pressure Bar 3 to 6
Lub Oil Pressure Guage Parameters can be displayed with required shut off system
Water Temp Guage
Hourmeter cum r.p.m meter
Heat Rejection To coolant kW 187 199
Heat Rejection To Exhaust Gas kW 258 285
Heat Rejection To Charge Air kW 64 75
Heat Rejection To Surrounding Air kW 46 75

AC Generator

Power rating kVA / kWe 350/280 365/292 380/304 400/320 450/360
Power Factor 0.8 lagging
No. of phases 3
Output Frequency Hz 50
RPM 1500
Output Voltage Volts 415
Voltage Variation % RV 5%
Full load Current (Rated) Ampere 487 507 528 556 626
Enclosure IS: 4691 IP 23
Cooling IS: 6362 IC 01
Insulation Class H
Excitation Type Self Exciter and Self regulated Brushless
Voltage regulation +/- 0.5% From no load to full load at lagging power factor of 0.1 to 1.0 & speed drop of less than or equal to 4%
Overload Capacity 1.5 x Rated Full Load Current for 15sec or 1 hr in every 12 hr with 10% overload
Unbalanced Load Permitted

Fuel tank with all internal piping and Standard Control Panel with all internal wiring and cabling provided as a standard scope of supply. For requirement of AMF control panel or synchronisation panels or any special panels, please contact us.

Rating Condition

  • All models are Prime Power rated as per ISO 8528.
  • Ratings are at 415 volt, 3 phase, 50 Hz, 0.8 pf at 1500 rpm
  • 10 % overload for one hour in every 12 hours permitted in accordance with ISO 3046/1, BS 5514,DIN 6271 for prime rated packages.
  • Packages comply to CPCB II exhaust emissions and noise regulations.
  • All specifications and dimensions are for referernce purpose and are subject to revisions and improvements.

*Reference condition 27 C Ambient Temp, 100 KBP (750 mm of Hg)Atmospheric Condition and 60% Humidity - As per IS 10002, ISO 3046.
