With years of experience and market research on India’s need for energy, our range is now backed by Baudouin’s reliability, durability and quality, combined with our precision Manufacturing, large scale of operations, and dedication to continuous improvement. With complete control of the preliminary design study to maintain the life cycle of your equipment throughout.

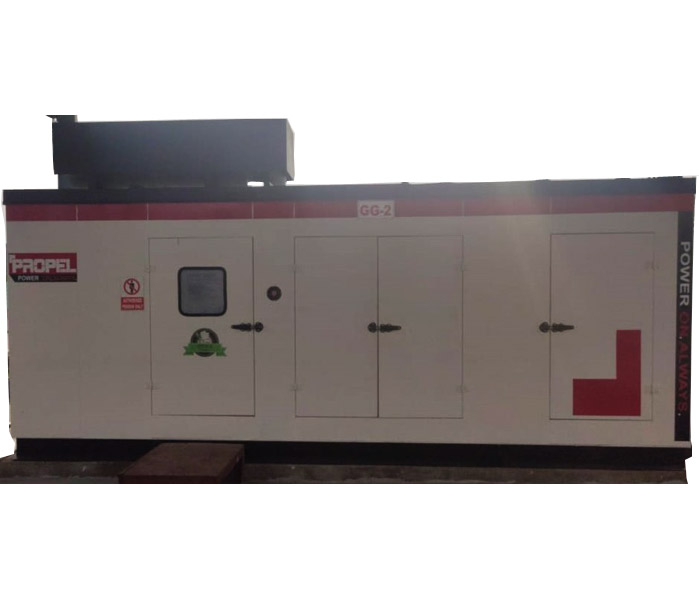

| DG Set Model | PB1010GG | ||
|---|---|---|---|
| DG Set Rating | 1010 KVA | ||
| Application | Prime Power, Continuous duty | ||
| Fuel | Natural Gas | ||
| Rated Current | 1403 Amps | ||
| RPM | 1500 | ||
| Genset Size (LxWxH) including Acoustic Enclosure | mm | 8000 x 2400 x 3000 | |
| Engine | |||

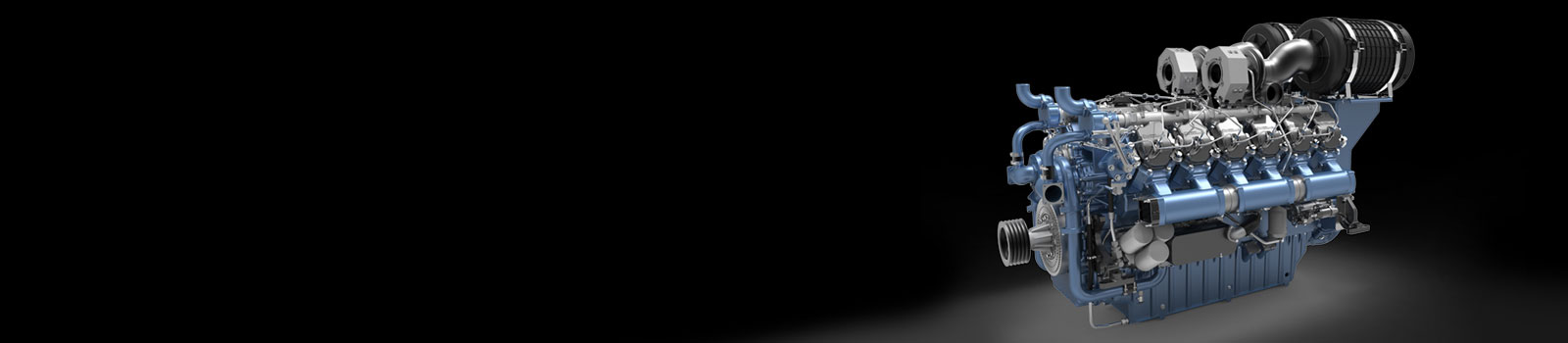

| Engine Model | 12M33G10N0/5 | ||
| Bore Diameter/Stroke | mm | 150 x 185 | |
| Number of Cylinders | 12 | ||
| Number of Valves | 48 | ||
| Displacement | (L) | 39.2 | |
| Gas system | Single Point Injection | ||
| Mixed mode | Electronic Control before Turbocharged mixture | ||
| Engine Rated Power | (kW) | 900 | |
| Compression Ratio | 11:1 | ||
| Emission standard | CPCB | ||
| Aspiration | Turbocharged and After cooled | ||
| Gas type | Natural Gas | ||
| Minimum Gas inlet pipe Dia | mm | 80 | |
| Oil type | 15W/40 CH-4 | ||
| Oil Tank Capacity | Litres | 146 | |
| Turbocharge inlet | Temperature（℃） | 39.5 | |
| Pressure（kPa） | 100.4 | ||
| Humidity（%） | 54.90% | ||
| Exhaust back pressure | 7.5 | ||
| Air intake system | |||
| Air mass flow | kg/h | 3816 | |
| Gas system | |||
| Gas quantity@ 100%PRP | kg/h | 159.2 | |
| Alternator | |||
| Make | Leroy Somer/ Meccalte | ||
| Rated Volt | 415 V | ||
| Voltage Regulation | (+/-)1% | ||
| Class of Insulation | Class H | ||
| Frequency | 50 Hz | ||
| Power Factor | 0.8 | ||
| Enclosure | IP23 | ||
| Cooling | IC01 | ||
| Excitation Type | Self excited and self regulated Brushless | ||
| Overload Capacity | 10% for 1 Hr in 12 Hrs operation | ||
| Manual Control Panel | |||
| ACB | 1600 Amps ACB | ||
| Digital display | Speed, Lube oil pressure (Trip), Coolant Temperature (Trip),Voltage, Current, KW, KWH, PF, KVA, Frequency | ||
