With years of experience and market research on India’s need for energy, our range is now backed by Baudouin’s reliability, durability and quality, combined with our precision Manufacturing, large scale of operations, and dedication to continuous improvement. With complete control of the preliminary design study to maintain the life cycle of your equipment throughout.

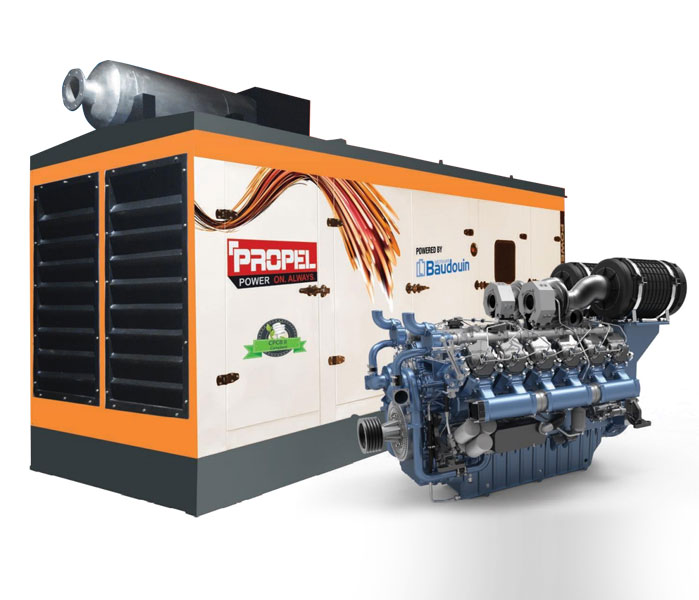

POWERED BYBaudouin

  • Baudouin’s industrial heritage of 100 years plus.
  • Quality, Adaptability, Reliability and Serviceability.
  • Complete Electronic Engine.
  • Attractive Fuel Economy.
  • Delayed overhaul periods.
  • In-house packaging with service friendly canopy.
DG Set Model PB2006M16 PB2506M16 PB3206M19 PB4006M21 PB5006M21 PB7506M33 PB101012M26 PB125012M33 PB150012M33
Genset Rating* kVA/ekW 200 / 160 250 / 200 320 / 256 400 / 320 500 / 400 750 / 600 1010 / 808 1250 / 1000 1500 / 1200
Power Factor 0.8
Engine Make Baudouin
Engine Model 6M16G250/5E3 6M16G250/5E3 6M19G320/5E3 6M21G440/5E3 6M21G500/5E3 6M33D660E310 12M26D968E200 12M33D1210E200 12M33G1650/5
Rated BHP 322 322 389 489 550 885 1180 1475 1767
No. of Cylinders 6 6 6 6 6 6 12 12 12
Aspiration TCI
Governing Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic
Displacement Ltrs. 9.7 9.7 11.6 12.5 12.5 19.6 31.8 39.2 39.2
Compression Ratio 17:1 17:1 17:1 17:1 17:1 15:1 15.7:1 15:1 15:1
Bore X Stroke mm 126 x 130 126 x 130 126 x 155 127 x 165 127 x 165 150 x 185 150 x 150 150 x 185 150 x 185
Electric System Volt. 24 V
Fuel Consumption at 75% load L/H 33.86 41.85 53.57 67.13 83.3 132.6 153.77 187.2 228.9
Lube Oil Consumption %F.Cons ≤ 0.2% of Fuel Consumption
Lube Oil System Capacity Ltrs. 24 24 30 30 30 61 113 155 155
Coolant System Capacity Ltrs. 55 55/td> 62 55 55 159 191 233 233
Servivce Interval Hrs/Months 500 hrs. / 12 months
Alternator Make Meccalte / Leroy Somer
Alternator Type Brushless Single Bearing
No. of Phase 3 Phase
Frequency Hz 50 Hz
Type of insulation Class H
Type of Panel Standard Control Panel with Generator Controller / AMF, Synchronization etc on request
Accoustic Enclosure Size mm 5000 x 1800 x 2200 5700 x 2100 x 2400 7000 x 2550 x 2900 8000 x 2600 x 3000 8500 x 2700 x 3000
Approx DG Set Weight* kg 4800 5000 5300 6300 6300 6500 11500 12500

Rating Condition

  • Ratings are at 415 volt, 3 phase, 50 Hz, 0.8 pf at 1500 rpm.
  • 10% overload for one hour in every 12 hours permitted in accordance with ISO 3046/1, BS 5514, DIN6271 for prime rated packages.
  • Packages comply to CPCB II exhaust emission and noise regulations.
  • All specifications and dimensions are for referernce purpose and are subject to revisions and improvements.

*Tolerance applicable as per IS10002, ISO 8528

**Reference conditions as per IS 10002 and ISO 3046
